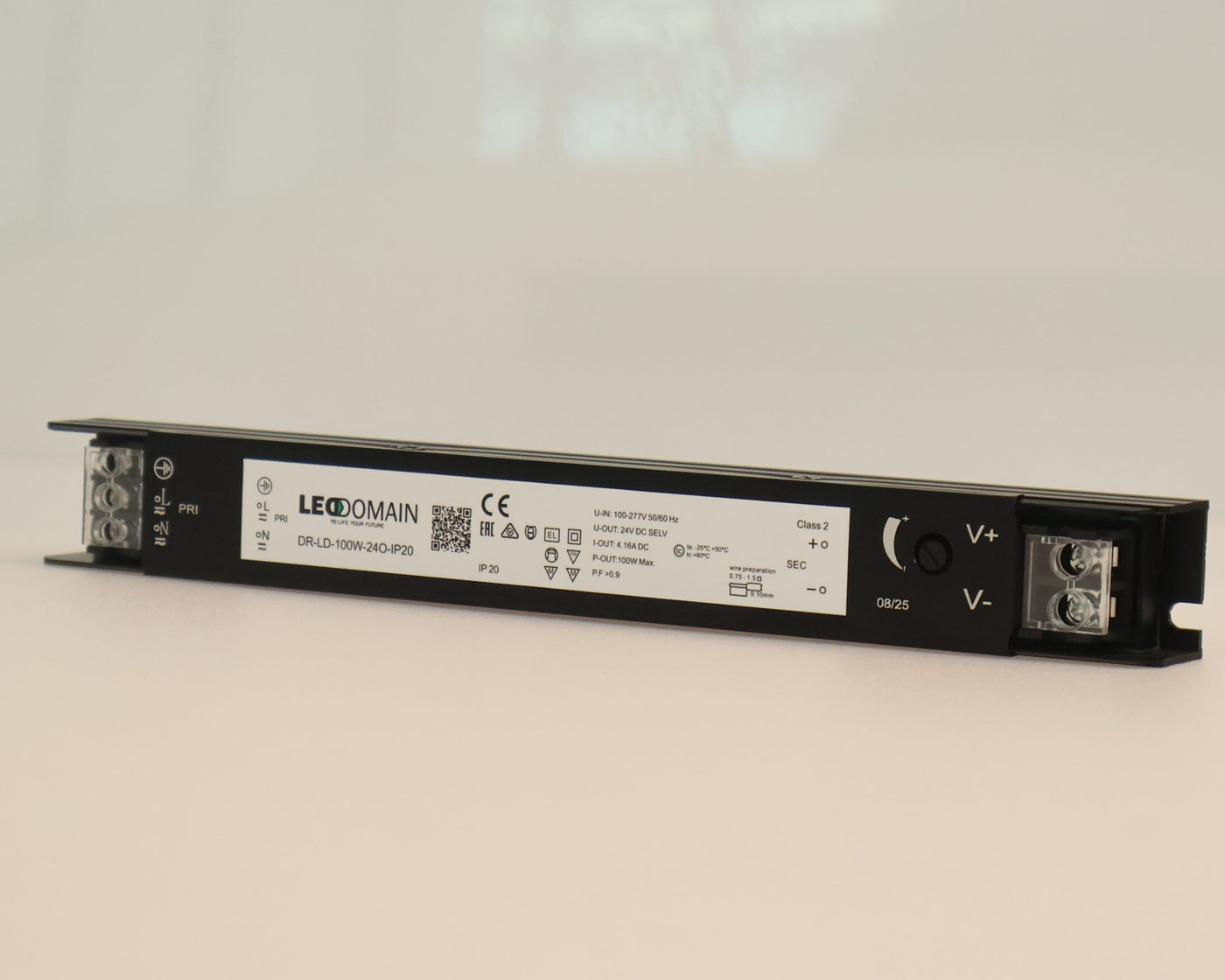

LEDDOMAIN DR-LD-100W-24O-IP20

This device acts as a professional-grade power supply, converting AC power into a stable 24V DC output. Its slender, low-profile design is optimized for installations where space is limited, ensuring it can be easily integrated into various fixtures.

Key Features

• Performance Specifications:

  • It features a 100W maximum output power with a 4.1A DC output.

  • The driver supports a wide input voltage range of 100–277V AC, 50/60Hz.

• Operational Standards:

  • The unit maintains a power factor of 0.9.

  • It is rated for an operating temperature range of -20°C to 50°C, with a case temperature (tc) of 85°C.

• Safety and Protection:

  • It is built to comply with Class 2 safety standards.

  • The unit carries CE certification, ensuring it meets recognized safety and quality regulations.

• Design and Installation:

  • The driver holds an IP20 rating, confirming it is designed for indoor use.

  • It includes clearly labeled primary (PRI) input and secondary (SEC) output terminal blocks for streamlined wiring.

Delivery options are shown at checkout. Contact LED Domain Qatar for project quantities, special delivery requests or installation accessory guidance.

Check wattage, voltage, color temperature and driver compatibility before installation.
