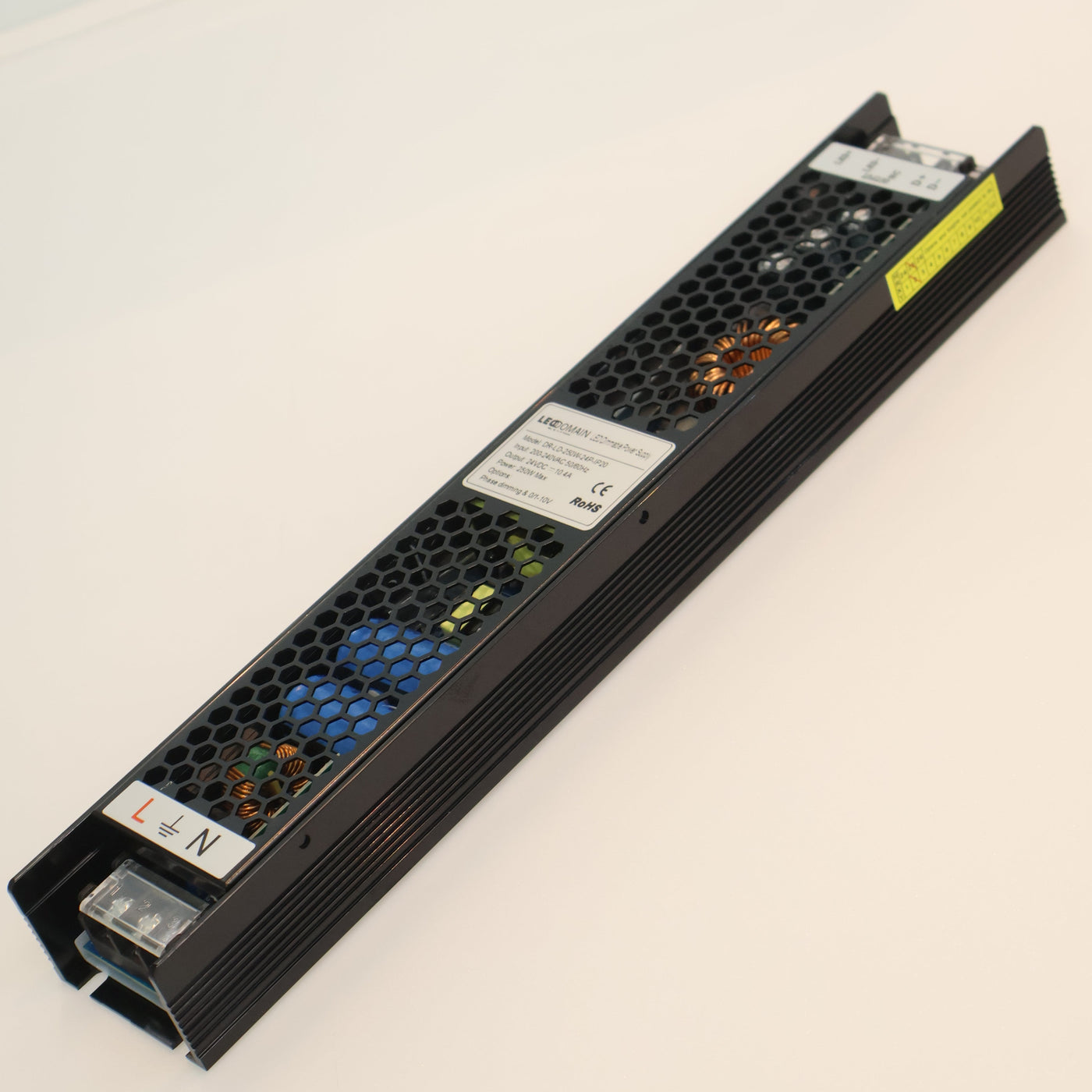

LE DOMAIN DR-LD-250W24P-IP20

A high-capacity, constant voltage LED driver engineered for indoor professional lighting systems. The DR-LD-250W24P-IP20 provides a stable 24V DC output up to 250W and supports multiple dimming protocols. Its slim, perforated metal housing ensures efficient cooling, making it ideal for LED strips, cove lighting, retail displays, and commercial interiors where dimming control is required.

Key Features

• High Power Output: 250W Max, 24V DC, 10.4A
• Input Range: 200-240V AC, 50/60Hz
• IP Rating: IP20 — for indoor use, dry locations only
• Dimmable: Phase Dimming & 0/1-10V dimming compatible
• Certifications: CE, RoHS compliant
• Build: Slim profile, honeycomb ventilation for passive cooling
• Terminals: L/N input, +/- output, and D+/D- dimming terminals clearly marked
• Protection: Over load, over voltage, short circuit, over temperature
• Installation: Surface-mount with end brackets
• Efficiency: High power factor design
