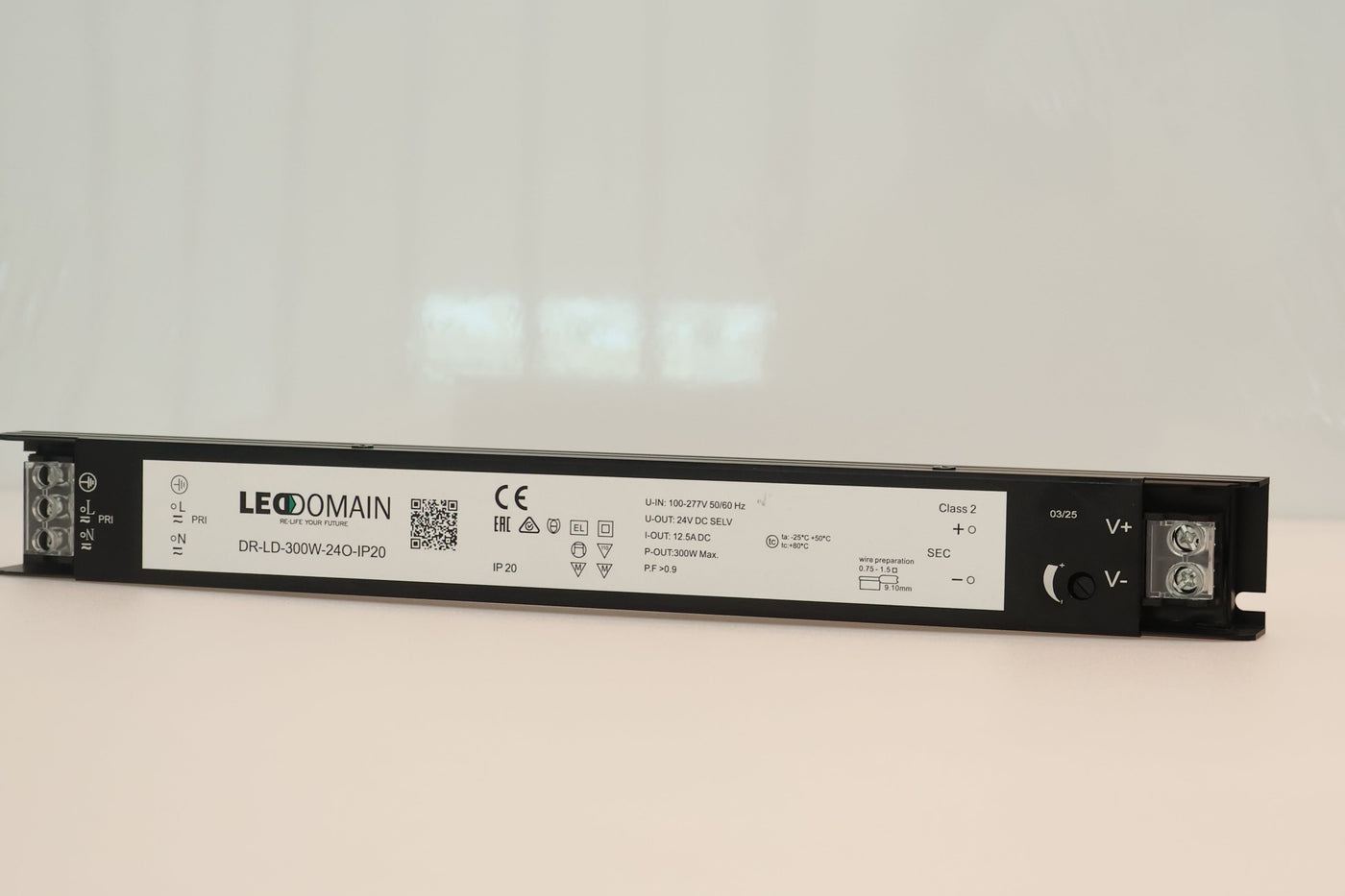

LE DOMAIN DR-LD-300W-24O-IP20

A high-output, constant voltage LED driver designed for indoor commercial and architectural lighting. The DR-LD-300W-24O-IP20 provides stable 24V DC power for large LED strip installations, signage, and cove lighting where higher wattage is needed. With its slim profile and perforated metal case, it’s built for enclosed spaces with adequate ventilation.

Key Features

• High Power Output: 300W Max, 24V DC SELV, 12.5A
• Input Range: 100-277V AC, 50/60Hz — universal voltage
• IP Rating: IP20 — for indoor use only, dry locations
• High Power Factor: >0.9 for energy efficiency
• Temp Range: -25°C to +50°C operating, case max 80°C
• Certifications: CE, RoHS compliant, Class 2
• Protections: Short circuit, over voltage, over load, over temperature
• Build: Slimline perforated metal housing for passive cooling
• Terminals: L/N input, +/- V output, screw terminals
• Wire Prep: 0.75 - 1.5 mm², strip 9-10mm
• Mounting: Side slots for surface mounting

Delivery options are shown at checkout. Contact LED Domain Qatar for project quantities, special delivery requests or installation accessory guidance.

Check wattage, voltage, color temperature and driver compatibility before installation.
