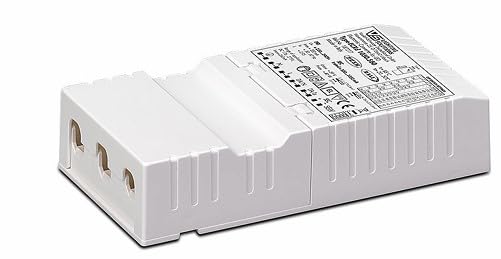

VOSSLOH-SCHWABE 40W 350-1050mA 10–54V IP20 DALI CC LED DRIVER POWER SUPPLY
VOSSLOH-SCHWABE 40W 350-1050mA 10–54V IP20 DALI CC LED DRIVER POWER SUPPLY
Regular price
QAR 172,00
Regular price
Sale price
QAR 172,00
Taxes included.
Quantity
Couldn't load pickup availability
- Product features: Compact casing shape, With integrated cord grip, For through-wiring,
- Functions: Selectable current output by DIP switch, The output current can be freely adjusted between 300 mA and 1050 mA (187217) or between 650 mA and 1400 mA (187218), Suitable for central battery system for emergency lighting acc. to EN 50172,
- Electrical features: Mains voltage: 220–240 V ±10%, Mains frequency: 50–60 Hz, DC operation: 176–275 V, 0 Hz, Push-in terminals: primary 0.75–2.5 mm² , and secondary 0.5–1.5 mm², Power factor at full load: 0.95, Standby losses: < 0.5 W, Open circuit voltage (Umax.): 59 V, Secondary side switching of LED modules is not allowed,
- Dimming: Dimming range: 1 to 100% , If no dimming interface is connected, brightnesswill stay at 100%.
- Safety features: Protection against transient main peaks up to 2 kV (between L and N) or up to 4 kV (between L/N–PE), Electronic short-circuit protection, Overload protection, Overtemperature protection, Protection against "no load" operation, Degree of protection: IP20, Protection class II, SELV,
